JSB Series Metal Flexible Conduit
What Are JSB Series Connectors?
JSB Series are strong connectors that keep your wires safe. They have a thick metal cover with a special coating. This makes them tough and pretty to look at. These connectors join pipes that hold wires. They make your work fast and easy.
Why Pick Our JSB Series?
- Hard and Strong: Made with thick zinc metal with chrome on top
- Easy to Put Together: Saves you time when working
- Stays Flexible: Works in very hot or very cold places
- Keeps Water Out: No water gets in to hurt your wires
- Fits Many Sizes: From small (1/2″) to big (4″)
What’s Inside Our JSB Connectors?
| Part | What It’s Made Of | Why It’s Good |
|---|---|---|
| Outside Cover | Zinc with Chrome | Looks nice and lasts long |
| Inside Core | Steel with PVC Coat | Keeps water out |
| Grip Parts | Many types (clamps, screws) | Holds wires tight |
| Sizes | 1/2″ to 4″ wide | Fits all your needs |
Where to Use Our JSB Connectors
You can use these anywhere! They work great in:
- Big factories with lots of machines
- Wet places outside
- Tight spots where other connectors don’t fit
- Places with lots of shaking
- Buildings where wires must stay safe Our work great with these connectors!
Why Our Customers Love JSB Series
They Last Long
The zinc and PVC make these connectors strong. They don’t break even when:
- Chemicals touch them
- The weather is very bad
- Things hit or bump them
They Save Time
You can put them on fast! No need for lots of tools. The special design means:
- 30% less time to set up
- Easy to take off if needed
- No special tools needed Need help with tight spaces? Our 多孔电缆接头 works great with these!
They Keep Signals Safe
Bad signals can mess up your wires. Our JSB Series has:
- Special shields to keep bad signals out
- Strong grip to hold wires tight
- Ways to stop shaking from hurting wires
They Work With Many Things
You can use our JSB Series with lots of other parts:
- Pipes of many sizes
- Other brands’ parts
- Special ends and bends
- Boxes and panels Check out our Cable Gland Adaptors, Reducers & Enlargers to make more connections!
They Save Money
Using our JSB Series means:
- Less fixing later
- Longer life for your wires
- Less time spent working
- Fewer parts to buy
What Sizes We Have
We make JSB Series in all these sizes:
- 1/2 inch
- 3/4 inch
- 1 inch
- 1.5 inch
- 2 inch
- 3 inch
- 4 inch
What Places Use Our JSB Series
Our JSB Series works in many spots: | Where | Why It Works There | |———–|————————| | Steel Mills | Stands up to heat and rough use | | Data Centers | Keeps signals clean and safe | | Outside Jobs | Keeps water and dirt out | | Tight Spaces | Bends and fits where needed | | Home Projects | Easy for anyone to use |
How To Pick The Right JSB Connector
- Check the size of your pipes
- Think about where it will go (wet or dry?)
- Decide what grip type you need
- See if you need special shapes (like bends)
- Pick the right finish (what looks best) For wet places, look at our metal water proof cable gland too!
Why Our JSB Series Is Different
Better Materials
We use the best zinc and strong PVC to make parts that last.
Smart Design
Our team makes sure all parts fit just right. This means:
- Less time to put together
- Better grip on wires
- Less chance of breaks
Tested For Safety
We check every part to make sure:
- It keeps water out
- It stays strong when hit
- It holds tight when pulled
- It works in hot and cold
Many Choices
We have:
- Many sizes
- Many grip types
- Many shapes
- Many finishes For plastic options, see our plastic water proof cable gland.
How To Order
Getting our JSB Series is easy:
- Pick your size
- Choose how many you need
- Tell us where to send them
- Pick how fast you want them We can make special kinds just for you! Just tell us what you need.
Our Promise To You
When you buy our JSB Series, we promise:
- Top quality parts
- Fast shipping
- Help when you need it
- Fair prices
- New designs when you need them
Let’s Work Together
We can make special JSB connectors just for you! If you need:
- Special sizes
- Special shapes
- Special materials
- Special colors
- Special marks or logos Just ask! We love making new things.
Get Your JSB Series Today!
Don’t wait! Get the best JSB Series Flexible Conduit Connectors now. Your wires will thank you!
- Call us: +86 137 7301 8938
- Email us: [email protected]
- Visit us: www.cagland.com Keep your wires safe. Choose JSB Series today!
询问
规格
Product Specification
| Product Name | JSB series plastic coated metal hose |
| Product color | Black, gray |
| Product Material | (Inner layer) adopts galvanized steel strip and special insulation treatment; The outer layer is made of PVC material (UV resistant, anti-aging). |
| Product certification | European Environmental SGS: SHG134468/CHEM |
| working temperature | -10 ° C~+80 ° C, can reach+100 ° C in a short period of time. |

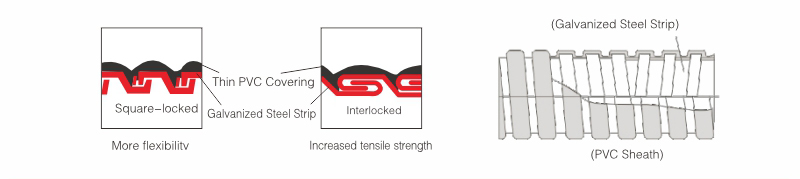

| Product Features | 1. The hose has waterproof, insulating, and tensile properties. 2. The surface is made of PVC material, and fire-resistant and flame-retardant agents are added to the PVC plastic. 3. The structure is a reverse buckle type, which increases tensile strength and is not easily broken or deformed. 4. Good bending performance and smooth internal structure, making it extremely easy to thread wires and cables. “ |
| application area | Railway, locomotive, transportation system engineering, air conditioning, various machinery, automation control equipment, power plants, chemical, power distribution systems, communication systems, ships, buildings, exposed wiring protection inside and outside factories. |
| Product Usage | Protect wires and cables to achieve insulation, waterproofing, and enhance the aesthetic appearance of cable bending. |
| usage method | First, thread the wires and cables into the conduit, and then match them with the corresponding model of YDT-DPJ connector |
| Product specifications | Please refer to the specification and size diagram for specific models |
| Technical Parameters (Consolidated Table) | |||||
| 模型 | Spec (mm) | G-System | Outer Ø ±Tol. (mm) | Natural Curve (mm) | Max. Axial Pull (Kg) |
| JSB-6 | Φ6 | 3/16″ | 9.00±0.25 | 40 | 335 |
| JSB-8 | Φ8 | 1/4″ | 11.8±0.30 | 45 | 470 |
| JSB-10 | Φ10 | 5/16″ | 14.5±0.30 | 55 | 590 |
| JSB-12 | Φ12 | – | 16.5±0.35 | 60 | 710 |
| JSB-13 | Φ13 | 3/8″ | 17.5±0.35 | 65 | 765 |
| JSB-15 | Φ15 | – | 20.2±0.35 | 80 | 885 |
| JSB-16 | Φ16 | 1/2″ | 21.2±0.35 | 85 | 940 |
| JSB-19 | Φ19 | – | 24.5±0.40 | 95 | 1120 |
| JSB-20 | Φ20 | 3/4″ | 25.5±0.40 | 100 | 1180 |
| JSB-25 | Φ25 | 1″ | 31.7±0.45 | 120 | 1450 |
| JSB-32 | Φ32 | 1¼” | 39.6±0.50 | 150 | 1885 |
| JSB-38 | Φ38 | 1½” | 46.6±0.60 | 180 | 2240 |
| JSB-51 | Φ51 | 2″ | 59.5±1.00 | 220 | 3000 |
| JSB-64 | Φ64 | 2½” | 73.5±1.50 | 310 | 3770 |
| JSB-75 | Φ75 | 3″ | 84.5±2.00 | 350 | 4400 |
| JSB-100 | Φ100 | 4″ | 109.0±3.00 | 410 | 4700 |
